TETRA LED ultraviolet and infrared curing system by Asco 3 - TecoPoint

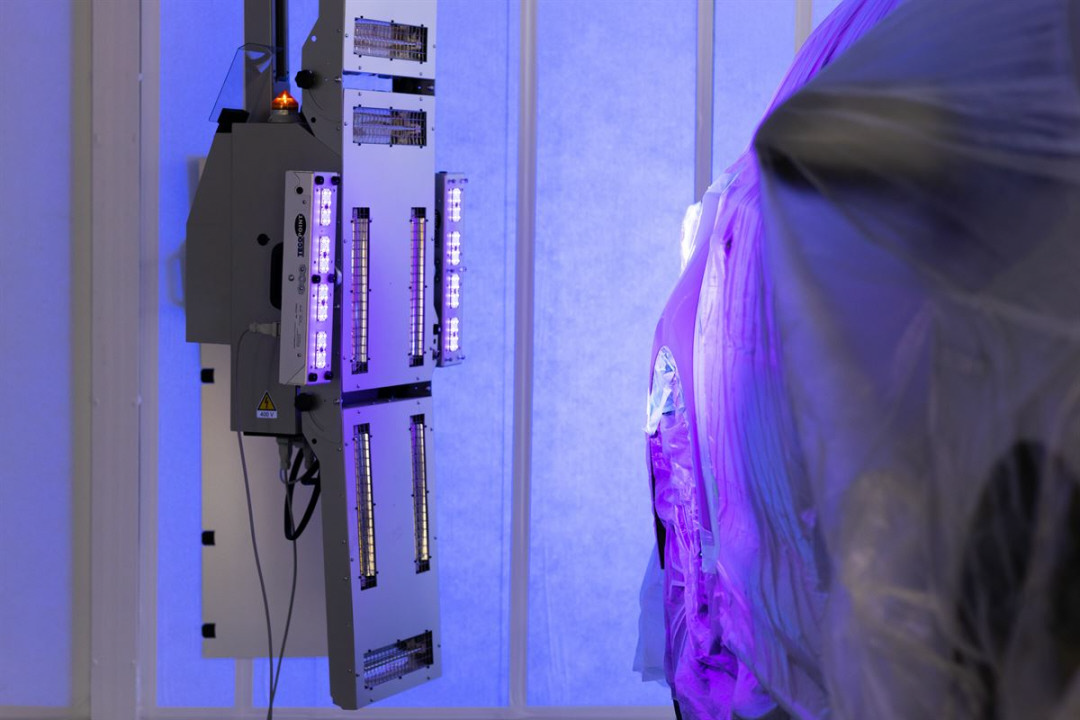

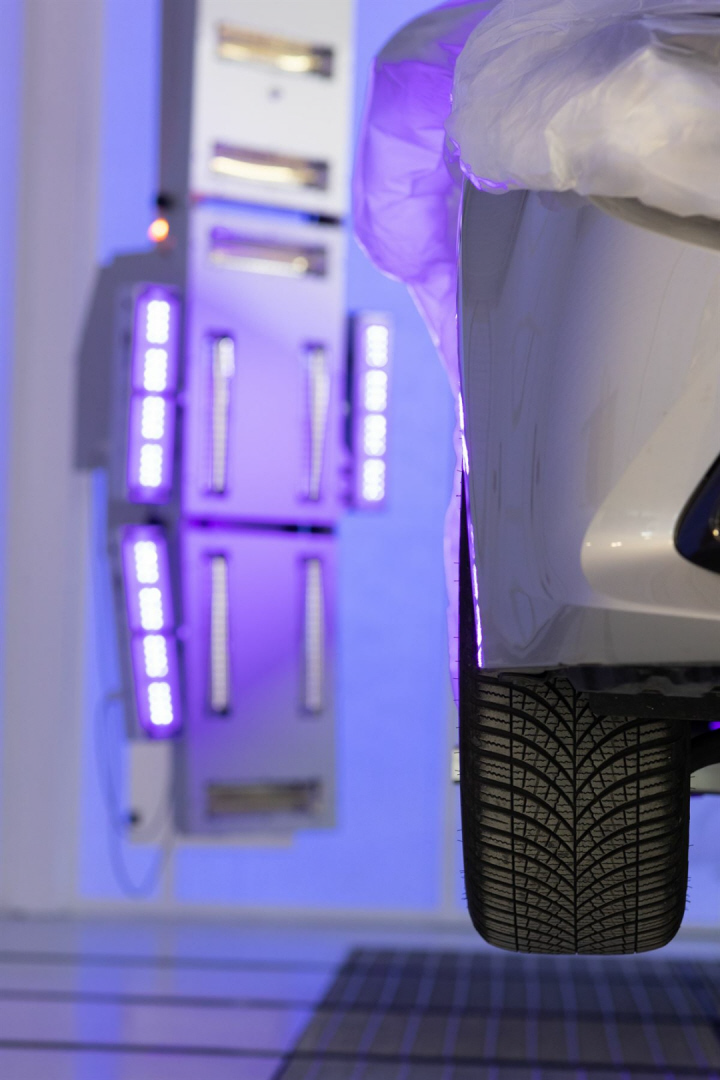

The 6120 STM TETRA LED is a drying system that allows you to treat both infrared and ultraviolet curing products. The system is modular; you can choose - even after the installation - the number of UV modules to insert based on your needs. It allows you to enhance the irradiation, moving the UV modules if necessary to be able to act on the various car models. The inclination of the UV-A LED modules is free and allows even curved surfaces to be irradiated uniformly.

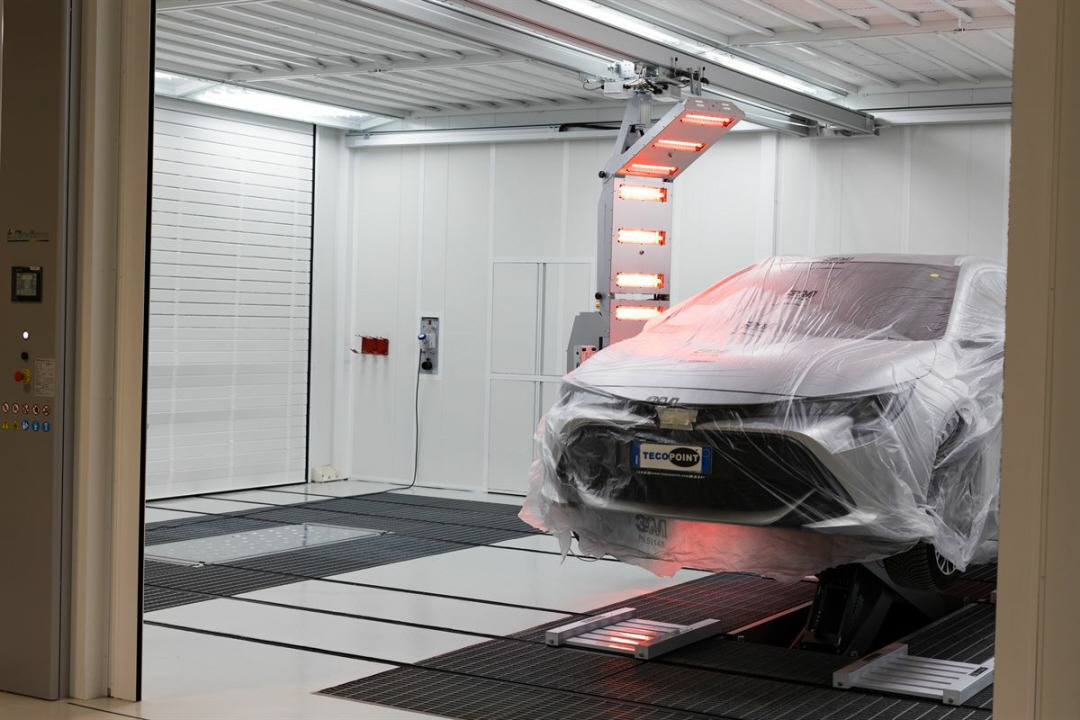

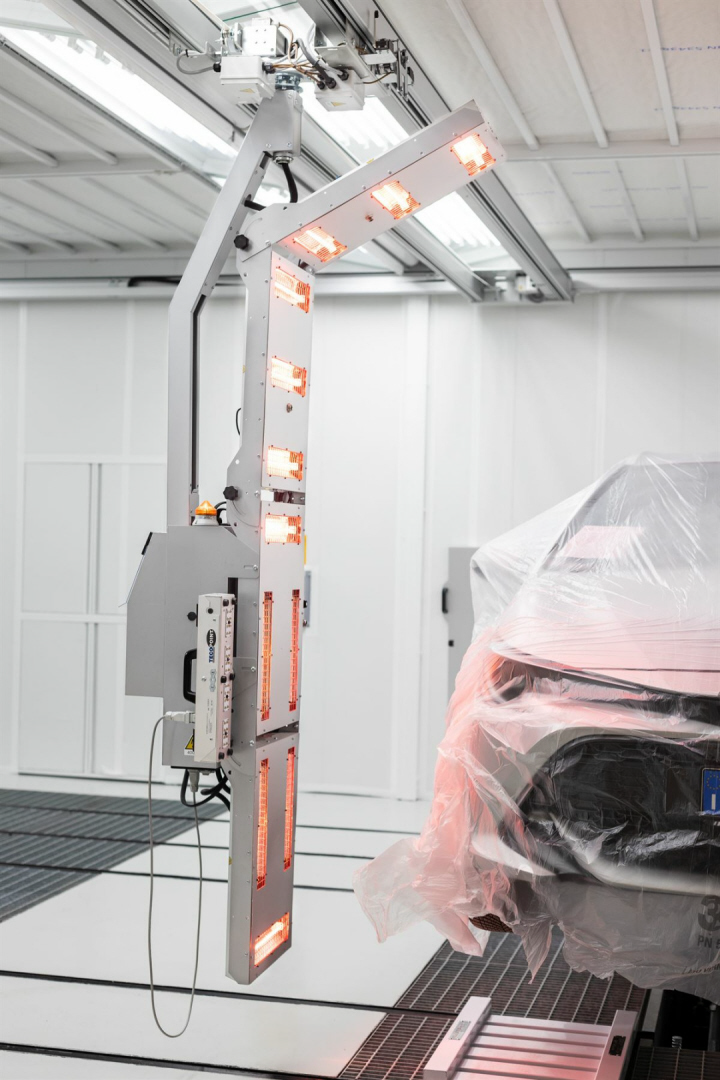

It is a semi-arch motorized on one or two axes depending on the version. It is controlled by a touch screen with configurable programs and can be managed remotely from a PC, tablet or smartphone. Equipped with 4 infrared cassettes, it has three temperature sensors that communicate data to the software. There is also a distance sensor to correctly position the cassettes. The power currently available is 12 kW.
This is a product that complies with the 4.0 regulation; it exchange data with the company administrative office.
