With this additional system component, brainflash GmbH is expanding its modular edrizzi® paint mist collection system to include a further solution for demanding painting conditions.

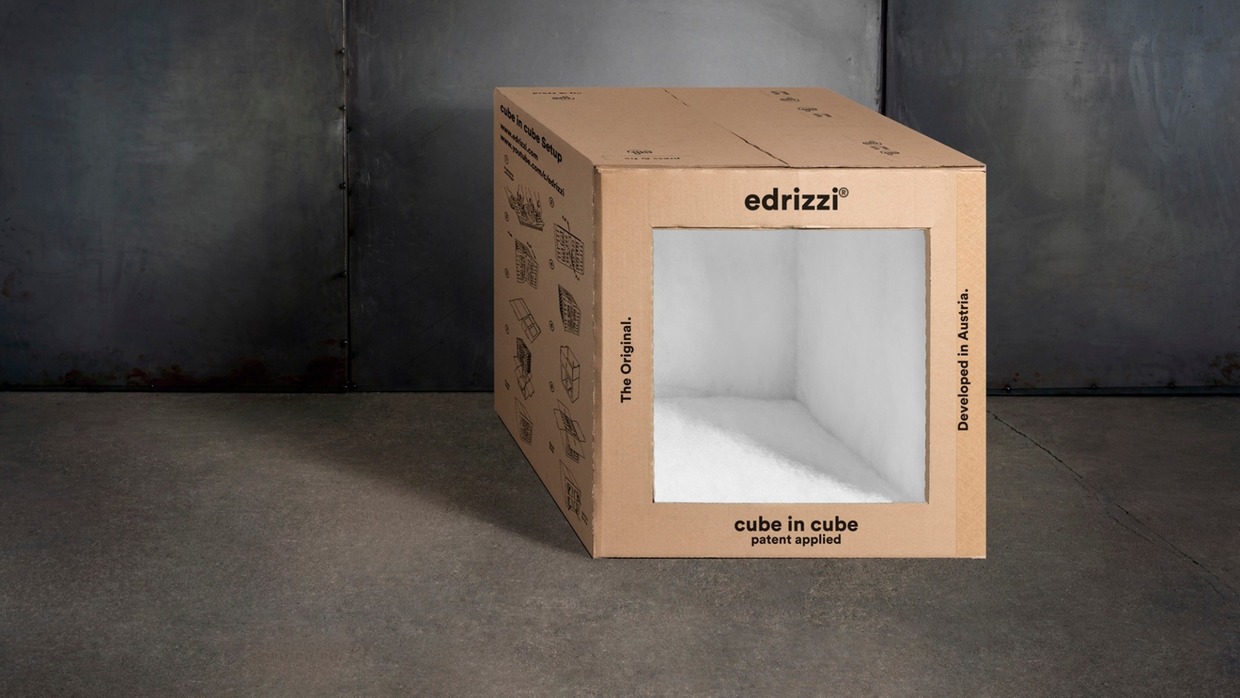

With the newly developed Cube-in-Cube module, the edrizzi® system fills a gap in applications involving low initial pressure differentials and dry dust. The filter has been specially designed for oversprays with high drying speeds and dust generation and can be used in the first separation stage as an edrizzi® Vario paint mist separator. It is also possible to install the module as a CUBE02 after-filter behind an edrizzi® Vario to guarantee maximum separation efficiency and service life.

Technical features of Cube in Cube

▪Very low initial pressure drop of just 10 Pa, making it particularly energy-efficient.

▪Filter area of 0.85 m² made from bonded naffi® filter fleece, stabilised by a cardboard backing

▪Space-saving delivery in a flat pack, easy to handle

▪Modular design: Compatible with the edrizzi® modular system

Can be used modularly and flexibly as a paint mist separator in the first filter stage or as the CUBE02 after-filter variant

Ergonomic and sustainable choice of materials

The naffi® filter medium used was developed exclusively for industrial painting within the edrizzi® system. It consists of 100% recycled polyester, is glass-fibre-free and can be used without personal protective equipment. The module thus contributes to improving workplace conditions in the paint shop.

Successful testing in the furniture and automotive industries

The Cube-in-Cube is already being used successfully in a wide variety of industrial applications, including facilities in the furniture and automotive sectors. In several cases, no additional post-filtration stage is required, which underscores the high efficiency and high separation efficiency of the new module.

About the edrizzi® system

The edrizzi® system has been in use in international paint shops since 2003. With eight different paint mist separators, several pre- and post-filters, and a modular sheet steel construction, it offers a flexible solution for a wide range of requirements in surface finishing. The separation efficiency reaches up to 97% of overspray – with high cost-effectiveness, low maintenance requirements and improved occupational safety.

Thanks to its clear system architecture, the edrizzi® dry separation system can be seamlessly integrated into a wide variety of plant types – whether in new builds or retrofits. The edrizzi® system can be installed horizontally, vertically or in a combination of both. Size and configuration are variably scalable, and the system’s ease of handling is consistently designed to deliver both economic and environmental benefits. All edrizzi® system components are delivered flat-packed and disassembled to facilitate handling and simplify logistics – including the Cube in Cube. Assembly is quick and intuitive.

The edrizzi® system is a brand of brainflash GmbH from Tyrol, Austria. International distribution is handled by Freudenberg Filtration Technologies GmbH & Co. KG (automotive and automotive suppliers worldwide), Nittmann Filter for paint and air conditioning systems (Germany), Seliba S.L. in Spain and Portugal, Merrem & la Porte B.V. (Belgium, Netherlands, Luxembourg), Filtro Store (Italy), Technicis Filtration in France, Eagle Burgmann (Turkey) and PucoTec GmbH in Austria, the Czech Republic and Hungary.
