Product Details

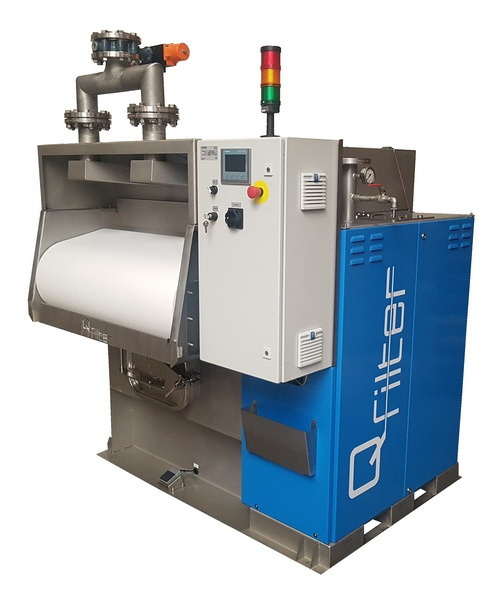

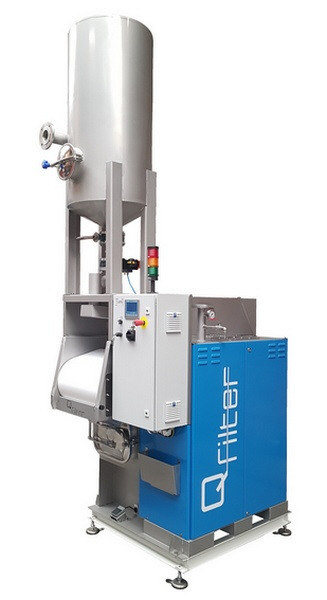

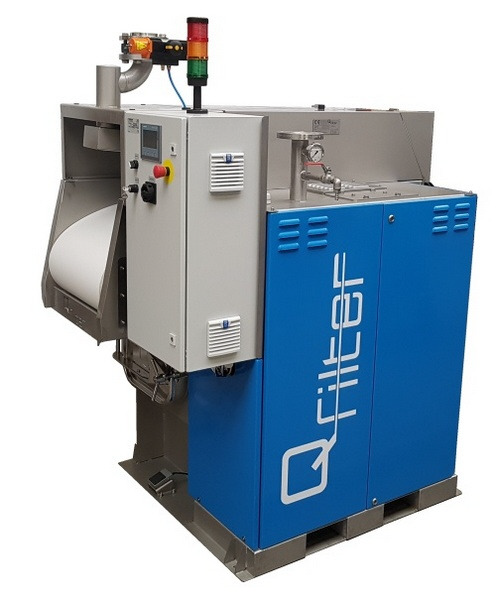

Q-Filter® Active Vacuum Belt Filter
A product of: ESSELENT SOLUTIONS B.V.

The Q-Filter® Active Vacuum Belt Filter is the solution for filtering aqueous cleaners and valuable media such as cooling emulsions. The Q-Filter® is a fully automatic active vacuum system and works with a negative pressure of up to 200 mbar, which ensures optimal performance and optimal use of filter cloth.

Due to the intelligent control, you remove more dirt with less filter cloth, which makes the system very efficient. It makes filtration possible down to 5 µm (even down to 1 µm with Pre-Coat Filtration) with an output of 15-30 m3/h.

The advantages: cost savings and improvement in product quality.

• Effective: Low filter cloth consumption through optimal control of the filtration process

• Efficient: A significantly finer filtration through perfect sealing and optimal process control

• Economical: Energy-conscious, low operating costs and a longer service life for your medium

• Compact: You need less than half the floor space

More products of ESSELENT SOLUTIONS B.V.

Q-Mag® is a powerful, high-efficient and fully automatic magnetic separator. No manual cleaning!
Q-Mag® automatically removes chips and metal particles from a medium. The medium spirals around the magnet, bringing every particle within the magnetic field fo...
About the product
‘Suparator® Dynamic Oil Separation is so efficient that oil is no longer reason to change the bath’.
Suparator® is an oil separation system, totally different than any other. It is unique because of its distinctive technological design which makes it possible t...
About the product
Want to reduce the cost of your pre-treatment? Deal with the contaminants!
Keeping the contamination of a degreasing bath, of industrial- and automotive paint lines, below acceptable levels is a challenge. With Suparator® and Q-Filter,...
About the product
